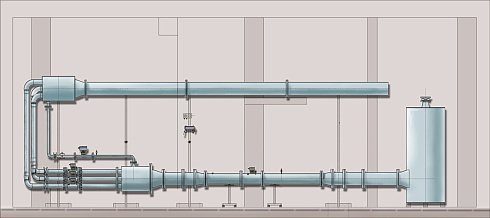

Irga-PU standard calibration rig

Irga-PU standard calibration rig is designed for testing and calibration of vortex, jet, turbine, rotational, ultrasonic and other flow meters (meters, flow meters) to measure the flow rate and volume of gaseous media (natural gas, air, steam, etc.), as well as for calibration of household gas meters.

More description

Description

The rig includes:

gas (air) volume measurement line
frequency driven ventilation unit
pressure sensors
differential pressure sensor
temperature sensors
remote terminal unit (hereinafter referred to as the RTU)
PC and software

Technical characteristics

Medium	air
Airflow rate reproduction range *	0.016 to 16000 m³/h
Notes * Airflow rate reproduction range to be determined by the customer's terms of reference
Limits of permissible relative error in measuring air volume	± 0,3%
Standard sizes of calibrated meters, DN	12.5 to 500 mm
Type of reference flow meter	Irga-RV, critical mode micro nozzles
Maximum overpressure of the medium	30 kPa
Medium temperature range	- 30 to + 30 °С
Supply voltage	220/380 V
Power consumption	no more than 45 kW
Calibration period	2 years

Advantages

Wide range of rate reproduction: allows to calibrate flow meters and counters, both domestic and industrial, with DN 500
High automation: allows setting and adjusting the flow programmatically from the stand operator’s computer - calibration is accelerated, i.e. time and energy are saved
The types of measuring instruments for which the calibration rig is intended, the ranges of flow rates, the types of reference flow meters are determined by the customer's terms of reference.
The remaining parameters of the rig and its adjustment to a specific room are designed by the experts of Globus LLC based on the customer's terms of reference.
